EV DC Fast Charger

EV DC Fast Charger

Sunmingcell leads the charge in DC fast charging technology with our cutting-edge DC Fast Charger. Designed to deliver fast and ultra-fast Level 3 charging, our chargers are at the forefront of EV charging infrastructure. With the capability to charge electric vehicles in mere minutes, our DC fast EV charging stations redefine convenience and efficiency for drivers on the go. Whether you’re embarking on a long journey or simply need a quick top-up, Sunmingcell’s DC Fast Charger ensures you spend less time waiting and more time enjoying the road.

Equipped with state-of-the-art technology, Sunmingcell’s DC Fast Charger sets the standard for rapid EV charging. Say goodbye to lengthy charging sessions and hello to swift replenishment of your vehicle’s battery. Our chargers are engineered to provide reliable and high-speed charging, making them the ideal solution for busy urban areas, highways, and commercial installations. Experience the future of electric mobility with Sunmingcell’s DC Fast Charger, where fast and efficient charging meets unparalleled convenience.

Join the revolution in electric vehicle charging with Sunmingcell’s DC Fast Charger. With its ability to deliver rapid Level 3 charging, our chargers empower drivers with the freedom to roam without the constraints of long charging times. Whether you’re a commuter, a fleet operator, or a commercial entity, our DC fast EV charging stations offer a seamless and hassle-free charging experience, ensuring you’re always ready to hit the road with confidence.

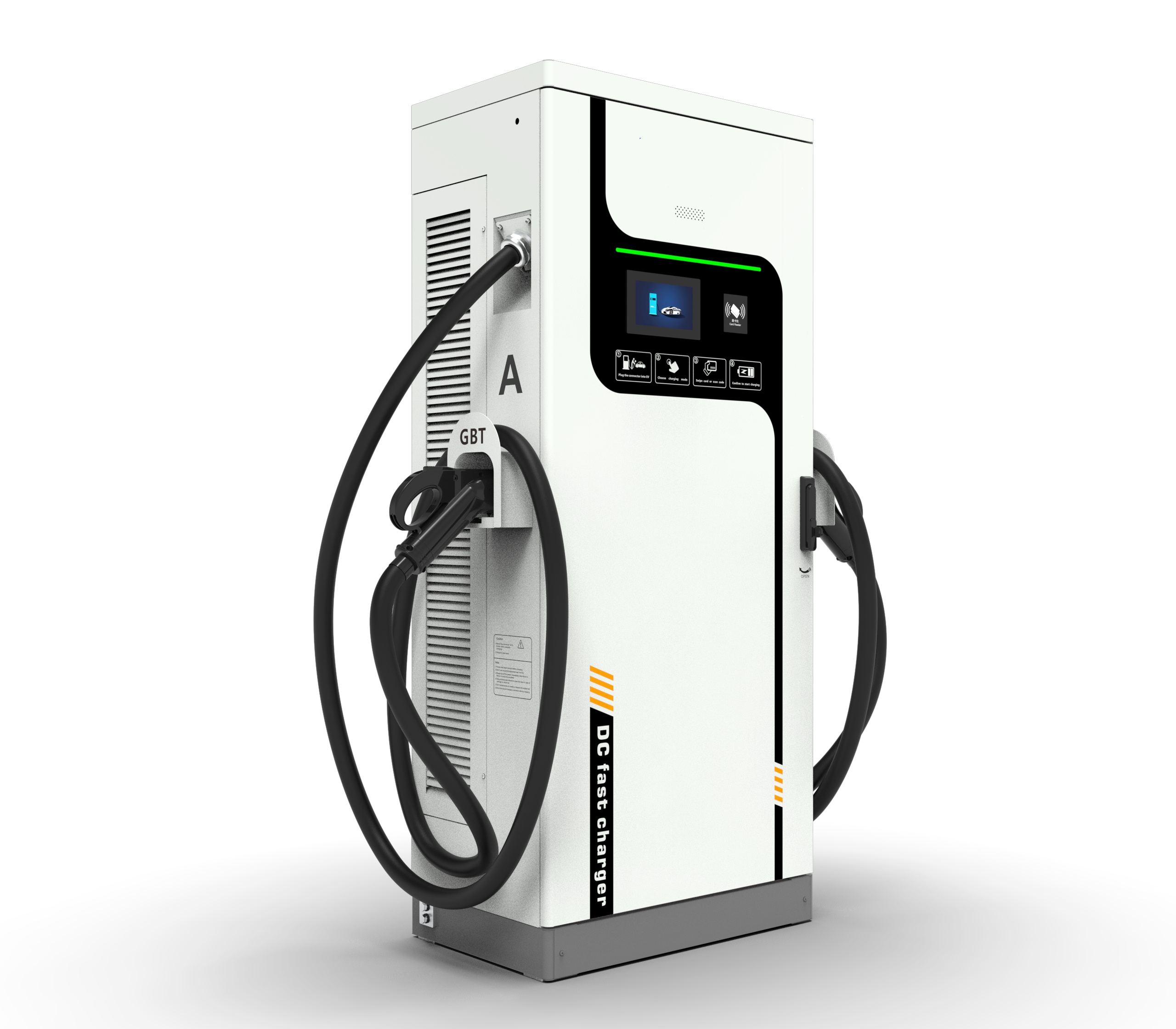

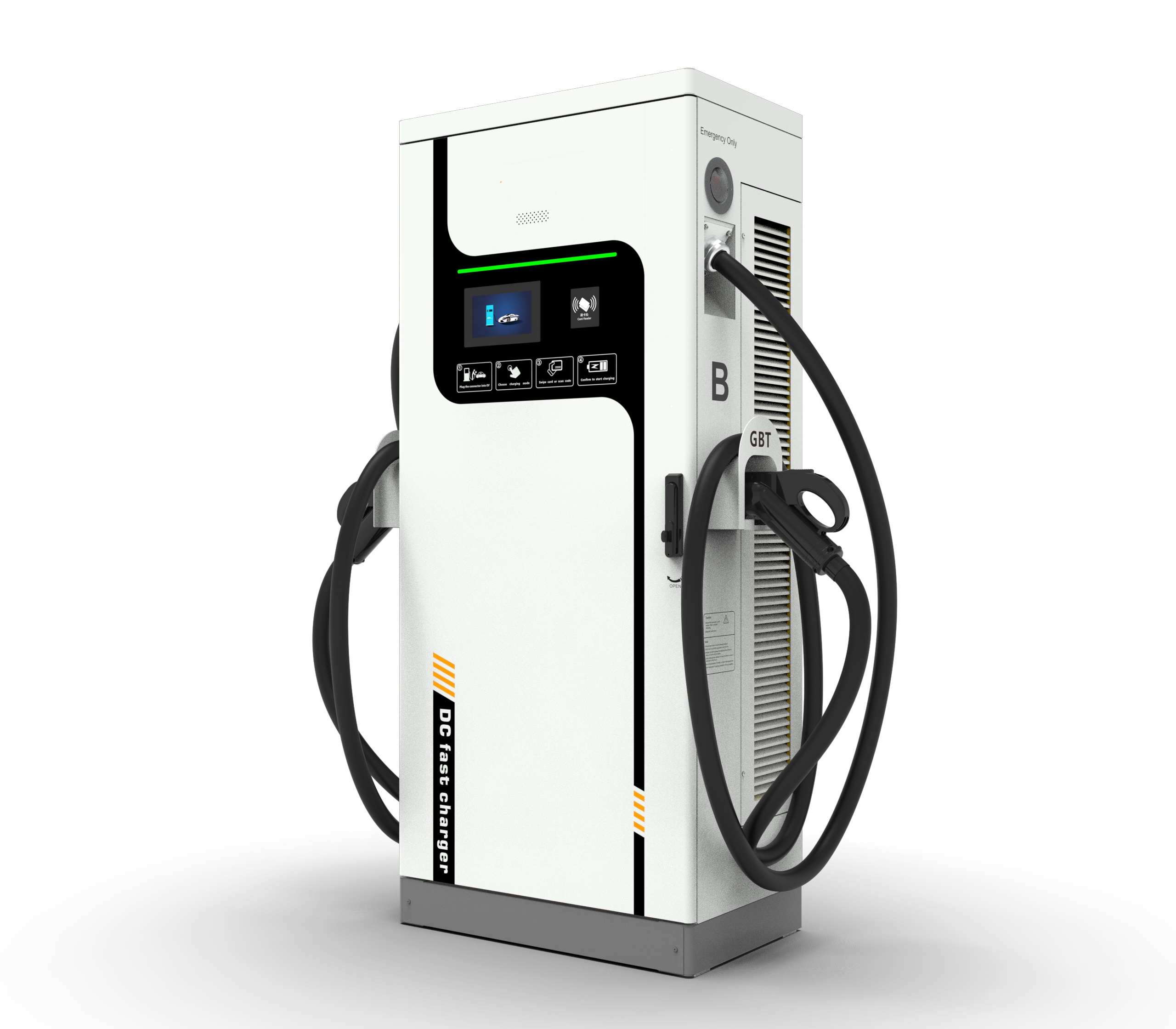

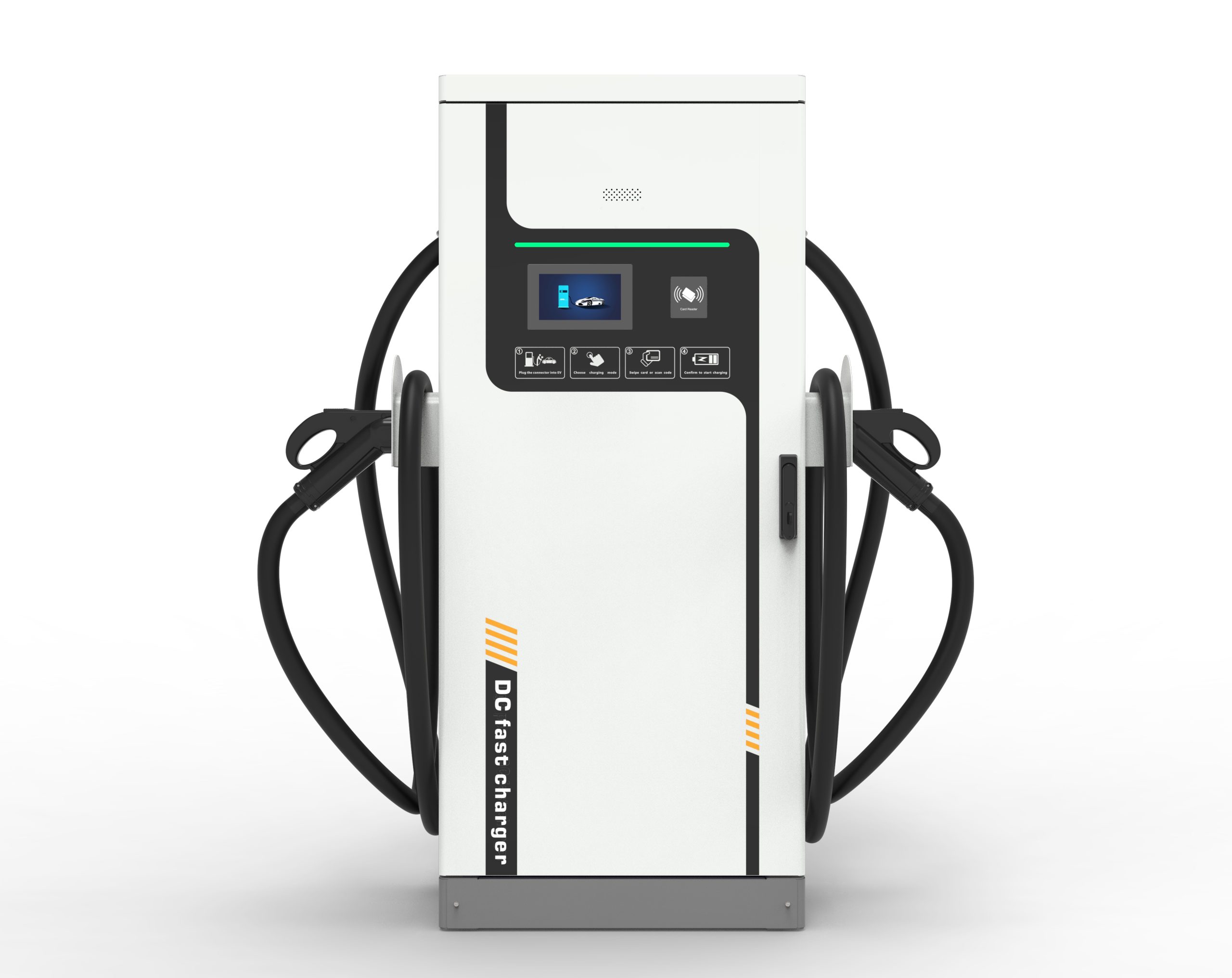

60-80-120-160KW

Model: YLCED60K Parameters

Basic Indicators:
Rated Power: 60kw
Cable Current: 2 (250A)
Cooling method: Forced Air Cooling
Network Type: Ethernet/4G
Operating Environment: Indoor or Outdoor (IP54)
Dimensions (WxDxH): 700mm x 400mm x 1600mm
Weight( kg): 190

Input Characteristics:
Input Voltage: 380VAC±15%,three-phase+N+PE
Frequency: 45Hz-65Hz
Rated Input Current: 97A
Power Factor: ≥0 .99
ITHD: ≤5%

Output Characteristics:
Voltage Range:100- 750VDC
Maximum Current: Aplug：150A Bplug：150A
Charging Strategy: 40kW+20kW
Peak Eﬃciency: 95%
Output Voltage Error: ≤±0 .5%
Output Current Error: ≥30A，≤±1%; <30A，≤±0 .3A
Voltage Stabilized Accuracy: ≤±0 .5%
Current Stabilized Accuracy: ≤±1%
Ripple Voltage Peak Value Coeﬃcent: ≤±1%

Environment Indicators:
Operating Temperature: -20 ~ +50 ° C
Storage Temperature: -40 〜+80 ° C
Relative Humidity: 5~90%RH, non-condensing
Operational Altitude: 2000m No derating required >2000m,the working temperature decreases by 1 ° C for every 100m rise

Model: YLCED80K Parameters

Basic Indicators:
Rated Power: 80kw
Cable Current: 2 (250A)
Cooling method: Forced Air Cooling
Network Type: Ethernet/4G
Operating Environment: Indoor or Outdoor (IP54)
Dimensions (WxDxH): 700mm x 400mm x 1600mm
Weight( kg): 220

Input Characteristics:
Input Voltage: 380VAC±15%,three-phase+N+PE
Frequency: 45Hz-65Hz
Rated Input Current: 129A
Power Factor: ≥0 .99
ITHD: ≤5%

Output Characteristics:
Voltage Range:100- 1000VDC
Maximum Current: Aplug：200A Bplug：200A
Charging Strategy: 40kW+40kW
Peak Eﬃciency: 95%
Output Voltage Error: ≤±0 .5%
Output Current Error: ≥30A，≤±1%; <30A，≤±0 .3A
Voltage Stabilized Accuracy: ≤±0 .5%
Current Stabilized Accuracy: ≤±1%
Ripple Voltage Peak Value Coeﬃcent: ≤±1%

Environment Indicators:
Operating Temperature: -20 ~ +50 ° C
Storage Temperature: -40 〜+80 ° C
Relative Humidity: 5~90%RH, non-condensing
Operational Altitude: 2000m No derating required >2000m,the working temperature decreases by 1 ° C for every 100m rise

Model: YLCED120K Parameters

Basic Indicators:
Rated Power: 120kw
Cable Current: 2 (250A)
Cooling method: Forced Air Cooling
Network Type: Ethernet/4G
Operating Environment: Indoor or Outdoor (IP54)
Dimensions (WxDxH): 700mm x 450mm x 1700mm
Weight( kg): 240

Input Characteristics
Input Voltage: 380VAC±15%,three-phase+N+PE
Frequency: 45Hz-65Hz
Rated Input Current: 194A
Power Factor: ≥0 .99
ITHD: ≤5%

Output Characteristics
Voltage Range:100- 750VDC
Maximum Current: Aplug：150A Bplug：150A
Charging Strategy: 60kW+60kW(40kW+20kW+20kW+40kW)
Peak Eﬃciency: 95%
Output Voltage Error: ≤±0 .5%
Output Current Error: ≥30A，≤±1%; <30A，≤±0 .3A
Voltage Stabilized Accuracy: ≤±0 .5%
Current Stabilized Accuracy: ≤±1%
Ripple Voltage Peak Value Coeﬃcent: ≤±1%

Environment Indicators:
Operating Temperature: -20 ~ +50 ° C
Storage Temperature: -40 〜+80 ° C
Relative Humidity: 5~90%RH, non-condensing
Operational Altitude: 2000m No derating required >2000m,the working temperature decreases by 1 ° C for every 100m rise

Model: YLCED160K Parameters

Basic Indicators:
Rated Power: 160kw
Cable Current: 2 (250A)
Cooling method: Forced Air Cooling
Network Type: Ethernet/4G
Operating Environment: Indoor or Outdoor (IP54)
Dimensions (WxDxH): 800mm x 550mm x 850mm
Weight( kg): 320

Input Characteristics
Input Voltage: 380VAC±15%,three-phase+N+PE
Frequency: 45Hz-65Hz
Rated Input Current: 259A
Power Factor: ≥0 .99
ITHD: ≤5%

Output Characteristics
Voltage Range:100- 1000VDC
Maximum Current: Aplug：250A Bplug：250A
Charging Strategy: 80kW+80kW
Peak Eﬃciency: 95%
Output Voltage Error: ≤±0 .5%
Output Current Error: ≥30A，≤±1%; <30A，≤±0 .3A
Voltage Stabilized Accuracy: ≤±0 .5%
Current Stabilized Accuracy: ≤±1%
Ripple Voltage Peak Value Coeﬃcent: ≤±1%

Environment Indicators:
Operating Temperature: -20 ~ +50 ° C
Storage Temperature: -40 〜+80 ° C
Relative Humidity: 5~90%RH, non-condensing
Operational Altitude: 2000m No derating required >2000m,the working temperature decreases by 1 ° C for every 100m rise

Model: YLCED240K Parameters

Basic Indicators:
Rated Power: 240kw
Cable Current: 2 (250A)
Cooling method: Forced Air Cooling
Network Type: Ethernet/4G
Operating Environment: Indoor or Outdoor (IP54)
Dimensions (WxDxH): 800mm x 650mm x 1850mm
Weight( kg): 380

Input Characteristics
Input Voltage: 380VAC±15%,three-phase+N+PE
Frequency: 45Hz-65Hz
Rated Input Current: 388A
Power Factor: ≥0 .99
ITHD: ≤5%

Output Characteristics
Voltage Range:100- 1000VDC
Maximum Current: Aplug：250A Bplug：250A
Charging Strategy: 120kW+120kW
Peak Eﬃciency: 95%
Output Voltage Error: ≤±0 .5%
Output Current Error: ≥30A，≤±1%; <30A，≤±0 .3A
Voltage Stabilized Accuracy: ≤±0 .5%
Current Stabilized Accuracy: ≤±1%
Ripple Voltage Peak Value Coeﬃcent: ≤±1%

Environment Indicators:
Operating Temperature: -20 ~ +50 ° C
Storage Temperature: -40 〜+80 ° C
Relative Humidity: 5~90%RH, non-condensing
Operational Altitude: 2000m No derating required >2000m,the working temperature decreases by 1 ° C for every 100m rise

Model: YLCED400K Parameters

Basic Indicators:
Rated Power: 400KW
Cable Current: 2 (250A)
Cooling method: Forced Air Cooling
Network Type: Ethernet/4G
Operating Environment: Indoor or Outdoor (IP54)
Dimensions (WxDxH): 800mm x 780mm x 1850mm
Weight( kg): 530

Input Characteristics
Input Voltage: 380VAC±15%,three-phase+N+PE
Frequency: 45Hz-65Hz
Rated Input Current: 388A
Power Factor: ≥0 .99
ITHD: ≤5%

Output Characteristics
Voltage Range:100- 1000VDC
Maximum Current: Aplug：250A Bplug：250A
Charging Strategy: 200kW+200kW
Peak Eﬃciency: 95%
Output Voltage Error: ≤±0 .5%
Output Current Error: ≥30A，≤±1%; <30A，≤±0 .3A
Voltage Stabilized Accuracy: ≤±0 .5%
Current Stabilized Accuracy: ≤±1%
Ripple Voltage Peak Value Coeﬃcent: ≤±1%

Environment Indicators:
Operating Temperature: -20 ~ +50 ° C
Storage Temperature: -40 〜+80 ° C
Relative Humidity: 5~90%RH, non-condensing
Operational Altitude: 2000m No derating required >2000m,the working temperature decreases by 1 ° C for every 100m rise
